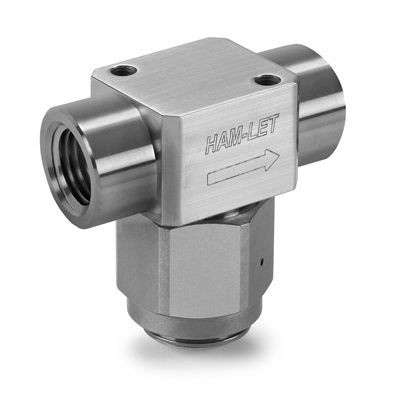

The Ham-Let® H-600R T-Type Filter with female thread 1/4 NPT is a T-Type filtration device, which will protect system components from fluid particles and contaminants. The H-600R provides easy on-line maintenance without disassembling it from the system.
H-600R T-Type Filter with female 1/4 NPT thread Features:
* Bar Stock 316 Stainless Steel or Brass Construction
* On-line Maintenance
* High-Pressure Characteristics (6000 psi in 316 stainless steel and 2000 psi in brass)
* Ham-Let Let-Lok® Ends, Male & Female NPT, and HTC® Face Seal
* Replaceable sintered filtration elements are available in 0.5, 2, 7, 15, 40, 60, 90, µm.
* Replaceable strainer filtration elements are available in 140, 230, 440µm
The Ham-Let® H-600R series T-Type filter designs have been tested for Proof and Burst. Each Ham-Let® T-Type filter is Nitrogen tested for leakage at 1000 psi.
