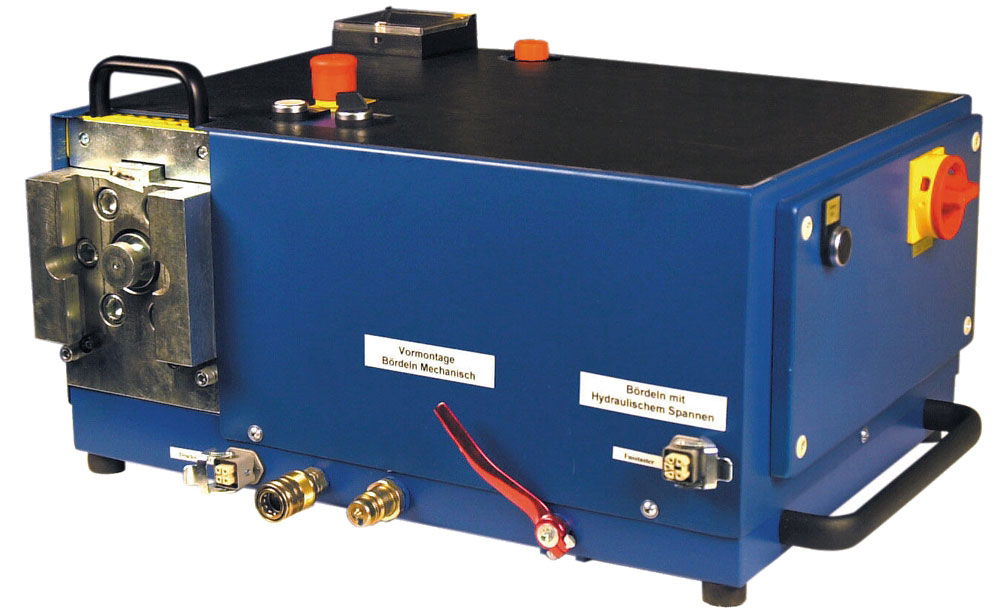

Combination machine for cutting-ring pre-assembly (all makes and materials) with manual or
automatic pressure setting and pipe flaring for steel and stainless steel pipes with an outside
diameter of 6 - 42 mm.
Technical Data:
Working pressure: from 0 to 200 bar
Operating voltage: 400 V / 50 Hz / 3-phase
Weight: ca. 85 kg
Dimensions: 500 mm high / 650 mm deep / 450 mm wide
Pipe flaring:
* Flaring is done at a 37° angle / DIN EMB ABO and SEA System
* Flaring assembly unit 37 Degrees UP 3
for mechanically clamping flaring dies, type UNI-BBO... or UNI-BB...
* Hydraulic Flaring Unit for hydraulically clamping flaring dies, type UNI-BBO 3...
Cutting-ring pre-assembling
* Cutting-ring pre-assembly with fully automatic pressure setting (controlled by the counter plates)
with the option of manually setting the pressure.
